Enterprise Servers

NuvolaNode™-VMXS&VMEP

2U Rack Dual Xeon Scalable & Dual AMD® EPYC with 8/12xFront 3.5″/2.5″ HDD/SSD & 4xRear 3.5″/2.5″ & 4xRear 2.5″ SAS/SATA HDD/SSD/NVMe

Best Solution, Lowest Price, Highest ROI for Resilient Business Continuity

NuvolaNode™-VMXS dual Intel® Xeon Scalable and NuvolaNode™-VMEP dual AMD® EPYC 2U Rack servers come with 8/12x3.5” front drive bays.   These servers have been designed to operate as the primary foundation for any IT infrastructure.  They deliver outstanding performance with highest reliability and quality at unmatched prices.

Generally, they are engineered to provide more capabilities and better value for any IT budget due to their highly flexible configurations.

Possible Rear Expansions

4xPCIe high-profile full-length + 4xPCIe low-profile full-length, or 4x3.5“/25” HDD/SSD + 4x2.5” HDD/SSD/NVMe, or combination of both

NuvolaNode™-VMXS and NuvolaNode™-VMEP series are optimized to outperform and to meet virtualization‘s resources allocation, high I/O demanding cloud applications and HA (high availability) clusters.

Add-On OCP3.0 NIC

OCP3.0 Hot-Plugable dual or quad ports network card 10G/25G/40G/50G/100G with RJ45 Copper or Fibre SFP+

Distance networking and high performance IPSAN/NAS storage scalability are possible with OCP3.0 (Open Compute Project) hot-plugable network controllers.  These controllers offer near-time data access with highest bandwidth.

Some Features:

  • Reliability, fault-tolerance, high-availability (HA) for resilient business continuity
  • Most competitive prices for highest ROI and lowest TCO
  • Unprecedented performance for I/O demanding virtualization and cloud
  • Scalability, flexibility, modularity and cable-less design
  • Built-on advanced power management systems for lower power consumption, minimized BTU and most importantly green delivery
  • Easy maintenance and support with field-replaceable components (FRC)

Applications:

General file server, virtualization, hyperconverged, cloud and high availability clusters for DR and business continuity.

  • P/N (Xeon Scalable): NVLNode-VMXS-2U-8B/12B
  • P/N (AMD EPYC 7002): NVLNode-VMEP-2U-8B/12B

Datasheet & Video & Images & Technical Doc

NuvolaNode™-DCEP

Data Centre 1U Rack Dual AMD® EPYC with 10x2.5” or 4×3.5″/2.5” SAS/SATA HDD/SSD

Most Compact, Highest Cores, Best Value for High FLOPs and I/O Intensive Apps

Built on dual AMD® EPYC 7002 CPU series, NuvolaNode™-DCEP servers are compact 1U rack powerhouse systems for deployment as part of the high performance computing operations in server room or data centre.

NuvolaNode™-DCEP computing nodes can deliver up to 64 physical cores and 128 hyper-threaded cores per CPU for total of 256 useable cores with two CPUs with frequency range between 2.00GHZ to 3.35GHz per core.  All consuming with as low as 450Watts power and fully populated with 10 SSDs at peak time.

NuvolaNode™-DCEP storage model comes with 4 drive bay and can provide up to 72TB of SATA/6Gpbs raw capacity with 4x18TB 3.5” SATA HDD, or up to 52TB of SAS/12Gbp with 4x14TB 3.5″ SAS HDD.

These units also accept 2.5” HDD/SSD in each 3.5″ tray and can provide a hybrid storage combo for both performance and storage at the same time. Two sets of RAID1 (RAID1-2x2.5” SSD + RAID1 2×2.5″/3.5” HDD).  This is a very costs-effective approach as dual purpose solution, performance and storage for entry-level virtualization and general purpose server.

Both models offer 32 DDR4-3200 memory channels for up to 2TB of physical memory in a single server making this server a true investment for ISPs, CSPs and data centre hosting with high ROI per unit.

Add-On OCP3.0 NIC

OCP3.0 Hot-Plugable dual or quad ports network card 10G/25G/40G/50G/100G with RJ45 Copper or Fibre SFP+

Distance networking and high performance IPSAN/NAS storage scalability are possible with OCP3.0 (Open Compute Project) hot-plugable network controllers.  These controllers offer near-time data access with highest bandwidth.

Some Features:

  • With all flash 10 x SATA6Gbps/SAS12Gbps SSD can deliver unprecedented IOPS and FLOPs for high core computing
  • SSD utilization reduces the heat associated with spindle drives and 7 dual-bearing turbo fans can deliver operating temperature of 35C max
  • Fully cable-less design provides easy maintenance and support with field-replaceable components (FRC)

Applications:

High I/O and FLOPs computing, data centre server with low TCO and high ROI for high number VM sales, high bandwidth load balancer cluster master and Crypto computing server.

  • P/N (AMD EPYC 7002): NVLNode-DCEP-1U-4B
  • P/N (AMD EPYC 7002): NVLNode-DCEP-1U-10B

Datasheet & Video & Images & Technical Doc

NuvolaNode™-3NXE

Edge 3 Nodes with Single Xeon Intel® E22xx, 128Gb RAM/Node, 6xFront 3.5“/2.5” SAS/SATA HDD/SSD (2/Node) + 3xInternal 2.5” SAS/SATA HDD/SSD

All Hot-Plugable Redundant Nodes Flexible, Modular and Cableless

NuvolaNode™-3NE Edge Computing series come with a single Intel® Xeon E22xx CPU and have been specifically designed to deliver 3 independent hot-plugable nodes for near data Edge Computing systems.   All three nodes can act separately as independent node, or as an aggregated triple node cluster.

Each node is equipped with 4xDDR4-2666 ECC Register memory socket providing up to 128Gb RAM/node and support 2x3.5“/2.5” hot-swappable HDD/SSD. Plus each note has an additional internal 2.5” SSD + 1x M.2-SSD 2242/2280 PCIe X4.

The compact design with a platinum 550W 1+1 redundant power supply would make these units perfect solution for caching systems and great load-balancer for edge computing optimization.

Some Features:

  • Intelligent power supply and temperature control for Low power consumption per node comply with OTII standard
  • Up to 48 aggregate vCPU cores with single Intel Xeon E2200 with 3 nodes.
  • Rugged design for harsh environments with super cooling capability
  • Easy maintenance and support with field-replaceable hot-plugable nodes

Applications:

Edge computing, load balancer, 3 nodes cluster, MVC (minimum viable cloud) nodes, general disaster recovery cluster servers, data centre hosting for ISP and CSP providers.

  • P/N (Xeon E2200): NVLNode-3NXE-2U (1N-3N)

Datasheet & Video & Images & Technical Doc

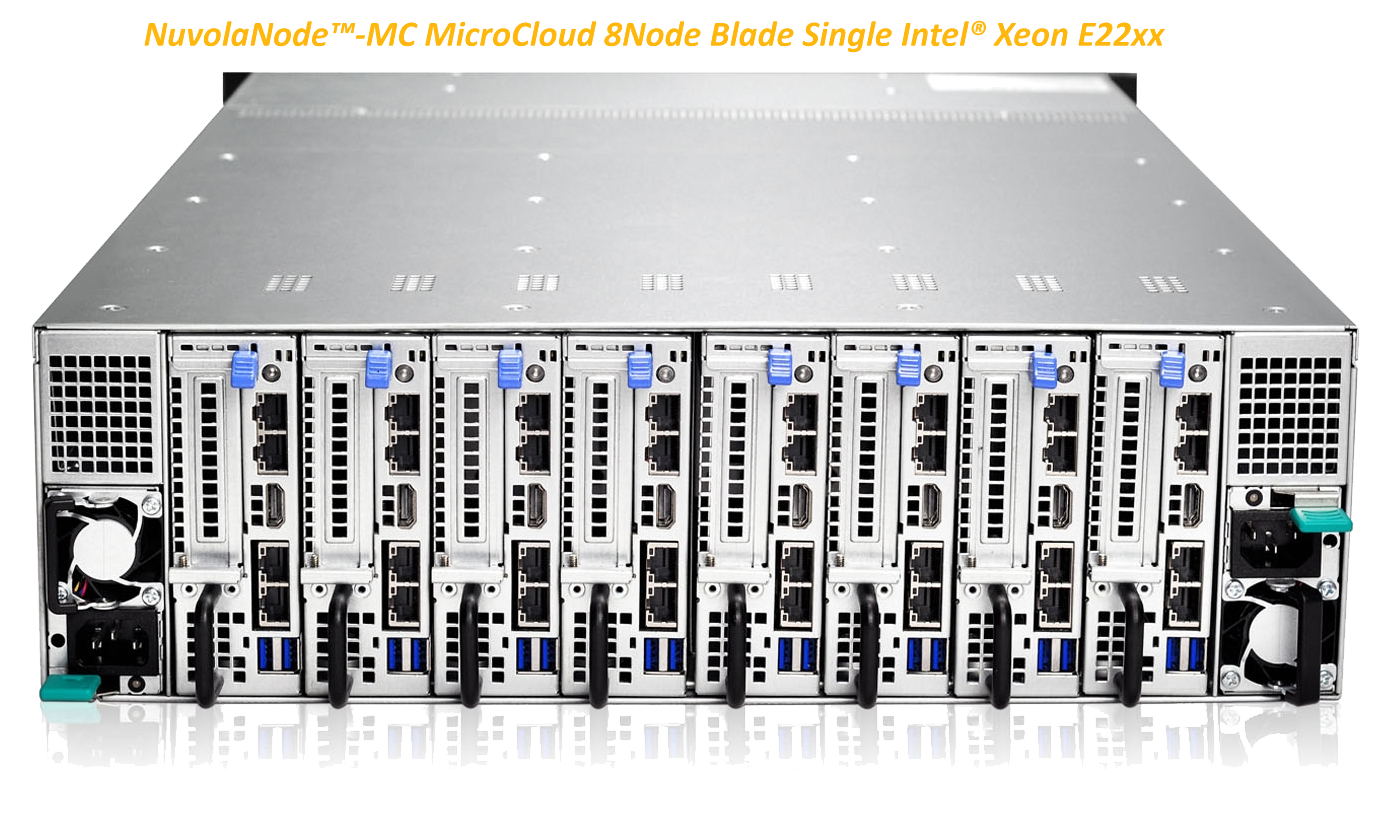

NuvolaNode™-MCXE

MicroCloud 8 Nodes Blade Single Intel® Xeon E22xx/Node 16x3.5“/2.5” SAS/SATA HDD/SSD

Build Composable Infrastructure Storage with Competitive Prices for Highest ROI

NuvolaNode™-MicroCloud Blade series have been designed based on 8 independent nodes in a 3U rack chassis system. Each single node comes with single Intel® Xeon E22xx processor and up to 128GB DDR4-2933 ECC RAM.  These units are perfect solution for Composable Infrastructure storage subsystem and MicroCloud deployment.

Modular and cable-less design for on-the-fly node upgrade or replacement in case of failure. With 1200W CRSP 1+1 redundant PSU providing 150W low wattage consumption per node sustaining cooler blade system and a well-balanced power distributions across all nodes.

Light weight hot-plugable nodes make it easy for adding or removing a blade for maintenance and components upgrade.

Some Features:

  • 8 instant hot-plugable, fault-tolerance and light weighted nodes for total of 128 vCPU cores
  • High performance computing nodes for I/O demanding cloud applications
  • Scalability, flexibility, modularity and cable-less design
  • Built-on advanced power management systems for lower power consumption, minimizing BTU, overall costs reductions and most importantly green delivery
  • Easy maintenance and support with field-replaceable components (FRC)
  • Most competitive prices with lowest TCO and highest ROI

Applications:

Composable infrastructure storage subsystem, hyperconverged with aggregated nodes, micro cloud all in one and for ISPs and CSPs data centre deployment.

  • P/N (Xeon E2200): NVLNode-MCXE-3U (1N-8N)

Datasheet & Video & Images & Technical Doc

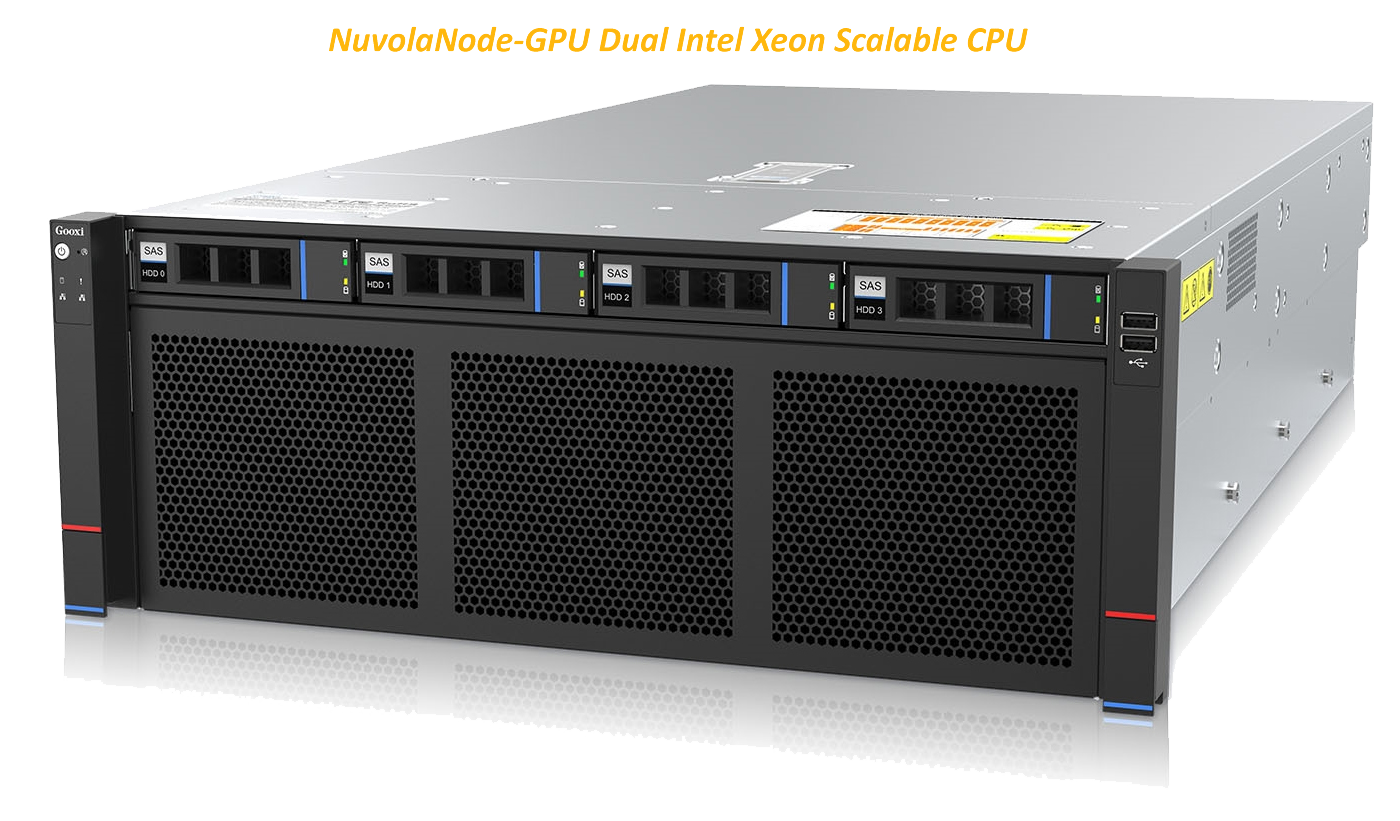

NuvolaNode™-XSGP/E5GP

10 GPU 4U Rack Dual Intel® Xeon Scalable/E5-2600V4 with 4xFront 3.5“/2.5” HDD/SSD SAS/SATA + 4xRear 2.5” HDD/SSD SAS/SATA

Build AI, ML, BigData and Scientific Application with GPU-OnDemand

GPU computing or accelerated computing is one of the most growing server technologies in recent decades.  The need for scientific computing, AI, ML, NL, BigData and Blockchain developments have pushed this technology toward very innovative path.

NuvolaNode™-10GPU have been developed with parallel GPU architecture in mind. They are custom-built powerful GPU systems equipped with Dual Xeon Scaleable delivering up to 112 vCPU core with 2nd Gen Xeon Gold 62xx/R series and with up to 4TB of specialized 3DS (Dimension Stacking) DDR4-2933 ECC register quad rank memory modules in 16 channels.

NuvolaNode™-10GPU supports 10 double-width, full-height GPU cards and it is compatible with all NVIDIA GTX and RTX series. They also have been tested with different NVIDIA GPU series (e.g. GeForce®, Quadro® and others) as well with Tesla® computational accelerators and Tesla companion processors optimized for scientific and technical computing applications. They also supports the NVIDIA® CUDA® parallel-programming model.

NuvolaNode™-10GPU is a fully modular system with minimum cabling required only for GPU controllers.  They come with 11x 8038rpm high performance middle and rear fans installed on two upper and lower deck that can provide excellent cooling and thermal management.

Additional 7 low profile PCIex8/16 on upper deck can offer different scalability options for additional NIC and other HBAs.

Applications:

HPC (High Performance Computing) such as; AI, ML, NL, BigData, Blockchain, Cryptography and a full range of advance scientific programs.

  • P/N (Xeon E5-2600V4): NVLNode-E5GP-4U (0G-10G)
  • P/N (Xeon Scalable): NVLNode-XSGP-4U (0G-10G)

Datasheet & Video & Images & Technical Doc
